Key technical parameters and system benefits:

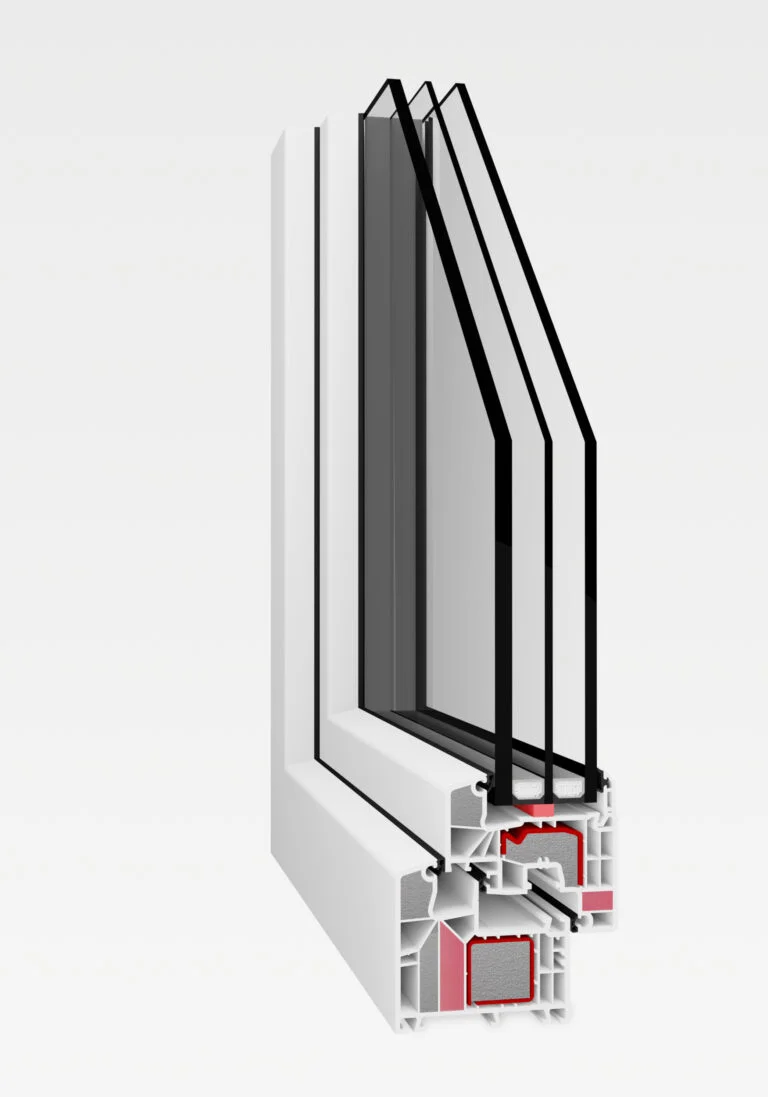

The Passiv-Line S system is based on a reinforced 85 mm profile construction and bonded glazing technology, which increases sash rigidity and reduces deformation. This solution improves the stability of the entire structure and enhances its durability over many years of use.
The triple-glazed unit with a Ug value of 0.6 W/m²K provides very good thermal insulation, reducing energy loss and improving the building’s energy efficiency. The system helps lower heating costs and stabilise the indoor temperature.
A high level of acoustic insulation, up to 45 dB, is achieved thanks to the special glass construction and triple-seal system, which effectively limits external noise penetration. This solution is particularly suitable for urban environments and buildings located near busy roads.
The system also offers enhanced security. The option to use an RC2 anti-burglary package and P4 class glass increases resistance to forced entry attempts and improves property protection.
An additional advantage of the construction is its very good rigidity and mechanical resistance, resulting from the bonded glazing technology and reinforced profile. This translates into greater sash stability and safe operation, even with large window dimensions.
Passiv-Line S windows combine high energy efficiency, good acoustic insulation and increased security, making them a versatile solution for modern residential and commercial construction.
